SCHNEIDER ELECTRIC POLSKA SP. Z OO

ATV320 ALTIVAR MACHINE 320 INVERTER 2.2KW 3F 5.5A IP66 380-500V AC 50-60HZ

  • ➜ Efficient delivery and transaction security
  • ➜ Authorized partner of electrical products and more
  • ➜ Place your order by 2:00 p.m. and we will ship your order today*
    *for products where the shipping time given below is "shipping today!"
  • ➜ Wide selection of assortment, high product availability.
  • ➜ Need help? Call or write to us, we will be happy to help.
€1,035.29
without VAT
Regular price: €1,203.83
The promotion runs until 31 March 2025

Shipping costs are not included in the price.

pcs.
Shipping time: 2-3 business days
Formy płatności - electrosphere

Description

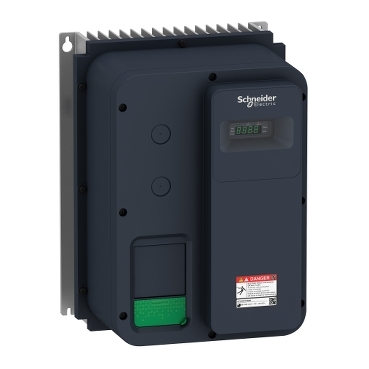

Frequency converter ATV320 3-phase 380/500VAC 50/60Hz 2.2kW 5.5A IP66

ATV320 3-phase frequency converter 380/500VAC 50/60Hz 2.2kW 5.5A IP66 logo schnider

Schneider Electric Altivar 320 frequency converter with integrated EMC filter, IP66 protection level and rated input voltage from 380V to 500V AC, designed to power synchronous and asynchronous motors with load capacity up to 5.5 A. can be used for engines with a rated power of up to 2.2kW / 3.0KM. It is intended for simple industrial and commercial machines, such as packaging machines, handling machines, mechanical actuators and lifting devices.

Supply voltage

3f: 380…500 V 50/60 Hz

Maximum continuous output current

5.5 A

Casing format

Hermetic

Motor rated power

2.2kW/3KM

Built-in EMC filter

YES< /p>

Ingress protection

IP 66

Functional design

Inverters in IP66/65 housing ready for installation in any environment. The easy-to-clean, fanless design keeps the drive clean and allows for use in a wide range of applications. Housing adapted for easy retrofitting with a VARIO maintenance switch and control buttons.


functional design

Alivar ATV320

The new standard for machine devices

< p class="sch_ni_ma-40">Altivar 320 is a new product from the series of converters for machines, which is distinguished by reliability, safety and durability. It allows you to optimize machine design while reducing costs for a wide range of applications. The drives enable efficient use of the available installation space, and thanks to advanced connectivity modules, they integrate with any automation architecture.

durable construction

Durable construction

Ability to operate at temperatures up to 60° C and execution to the highest standards of environmental resistance (3C3 and 352 according to EN/IEC 60721-3-3) allow for versatile use while maintaining high availability.

The structure is standardly designed for heavy applications (HD - Heavy Duty, overload capacity 1.5 x In for 60s every 10min, maximum torque 200% Mn) significantly expands the range of applications and minimizes the probability of potential selection errors.

< div class="sch_ni_content_descr_one" style="padding: 0;">

Integrated security features

The ability to use 5 different, built-in and certified security functions allows you to increase the security of the application you are creating. Available functions: STO, SLS, SS1, SMS, GDL.: STO: Safe Torque Off SLS: Safely Limited Speed SS1: Safe Stop 1 SMS: Safe Maximum Speed (Safe Maximum Speed) GDL: Guard Door Locking"

zintegrowane security functions
application universality

Application universality

ATVLogic is a simplified PLC that using 50 different function blocks will allow you to execute any application. Possibility to perform simple operations on signals as well as advanced control algorithms.

Possibility to install additional expansion cards to expand the application possibilities. A wide range of signal and communication cards.

Over 150 ready-made software functions enabling the implementation of the most advanced drive applications.

6 different motor control techniques. Selecting the appropriate control allows you to obtain optimal dynamics or reduce the energy consumption of the engine. Drive operation via a simple, built-in panel with the option of expanding with an external, advanced graphic panel. The possibility of connecting drives via a DC bus allows the elimination of expensive braking systems and energy return to the network.

zaawansowana dziennik

Advanced communication

Built-in ports in the drive: CANopen and Modbus RTU and FDT/DTM technologies allow for deep integration of the drive with the EcoStruxure Machine automation architecture. Wide range available PLCOpen-compatible communication modules and libraries facilitate connection to market-leading control systems and reduce commissioning and diagnostics time.

Flexibility

A universal, easy-to-use drive concept for all types of applications, both constant and variable torque. A wide range of supply voltage allows for reducing the costs of installation and equipment of the power supply path. Supply voltage range from 230 to 600VAC.

Schneider Electric - Altivar drive family

Family ALTIVARdrives are a series of universal and at the same time specialized devices. These innovative drives (360 active patents) are used in a variety of applications. 1.5 million units are sold annually. Users appreciate them for the ease of design, installation and operation.
The free SoMove software environment allows for simple configuration and quick and effective diagnostics and the ability to create backup copies of the program and transfer it between drives. Additional modules allow energy to be returned to the power grid for applications with high dynamics and significant inertia mass, which in turn allows the elimination of resistor systems and the creation of additional energy savings.

contact an expert

Complete 2D and 3D libraries are available in all CAD standards on the Schneider Electric websites, thanks to which machine manufacturers and designers can integrate Schneider Electric drives with just a few clicks in their own CAD system.
EcoStruxure™ Machine Advisor, EcoStruxure™ Pumping Performance Advisorare services that allow (thanks to information collected in the cloud) work monitoring, remote diagnostics and detection of any disruptions in work.

Schneider Electric - leader in digital transformation in energy management and automation

Schneider Electric logo

Schneider Electric is a leader in digital transformation in energy management and automation, in commercial construction housing, data centers, infrastructure facilities, energy and industry. It develops intelligent and integrated solutions and technologies to manage energy and processes in a safe, reliable, effective and sustainable way. The offer of Schneider Electric includes a wide range of products, ranging from modular equipment, circuit protection, switchboards and electrical equipment to complex operating systems.
Technical data
